Introduction
Picture this: you're comparing two "Level 2" EV chargers on a retailer's website. Same brand, same look, same basic promise of faster-than-wall-outlet charging.
But one costs $200 more than the other, and the only obvious difference is a number — 40A versus 50A.
That number matters more than most homeowners realize. Choose the wrong amperage, and you either overpay for charging speed your car can't use, or underestimate what your electrical panel can safely handle.
In some cases, that mistake triggers a panel upgrade costing thousands of dollars you never budgeted for.
This guide breaks down exactly what separates a 40 amp charger from a 50 amp charger: speed, electrical requirements, installation type, and total cost.
By the end, you'll have a simple framework for matching the right charger to your car, your driving habits, and your home's electrical capacity.
Key Takeaways
- 40A chargers deliver 9.6 kW on a 50A breaker with 6-gauge copper wire.
- 50A-class chargers need around 11.5 kW hardwired to a 60A+ breaker, with no plug-in option.
- The real-world speed gap is often just 5-10 extra miles of range per hour.
- Your home's panel capacity, not the charger's max rating, decides which option fits.
- Greenify Energy Savers helps Utah homeowners pair EV charging with solar for long-term savings.
What is a Level 2 EV Charger? Understanding Amps
Level 2 chargers run on 240 volts, the same voltage as your clothes dryer or electric oven outlet. That's what separates them from Level 1 charging, which uses a standard 120V wall outlet and adds range at a crawl (typically 3-5 miles per hour).
The math behind charger speed is simple:
Amps × Volts = Watts
| Charger Type | Amps | Volts | Output |
|---|---|---|---|
| 40A charger | 40A | 240V | 9,600 watts (9.6 kW) |
| 50A-class charger | 48A | 240V | 11,520 watts (~11.5 kW) |
Here's the detail that trips up most buyers. Under NEC electrical code, cord-and-plug EVSE connections cap out at receptacles rated 50A. Once you factor in the code's required 125% continuous-load safety margin, that receptacle limit translates to a 40A maximum continuous output for plug-in units.
Anything higher (including most units marketed as "50 amp chargers") must be hardwired directly into your electrical panel. In fact, a true 50A continuous rating would need a 62.5A circuit, so most "50A" chargers on the market actually output 48A on a 60A breaker. The extra headroom is a code safety margin, not extra charging speed you can access.
40 Amp vs 50 Amp EV Charger: Key Differences
Both are Level 2 chargers, but they diverge on four fronts: charging speed, electrical demands, installation type, and total cost. Here's how each stacks up.
Charging Speed and Miles Added Per Hour
Tesla's own charging data offers one of the clearest side-by-side comparisons available, since it tests the same vehicles at both outputs.
| Vehicle | 40A output (9.6 kW) | 48A output (11.5 kW) |
|---|---|---|
| Model 3 | 37 mi/hr | 44 mi/hr |
| Model Y | 37 mi/hr | 44 mi/hr |
| Model S | 34 mi/hr | 41 mi/hr |
| Model X | 29 mi/hr | 35 mi/hr |
| Cybertruck | 25 mi/hr | 30 mi/hr |
Source: Tesla Wall Connector charging specifications
That's roughly a 20% power increase, translating to about 5-7 extra miles per hour depending on the model. Over an 8-hour overnight charge, that gap narrows even further in practical terms. Most drivers wake up to a full battery either way.
Electrical Requirements and Installation Type

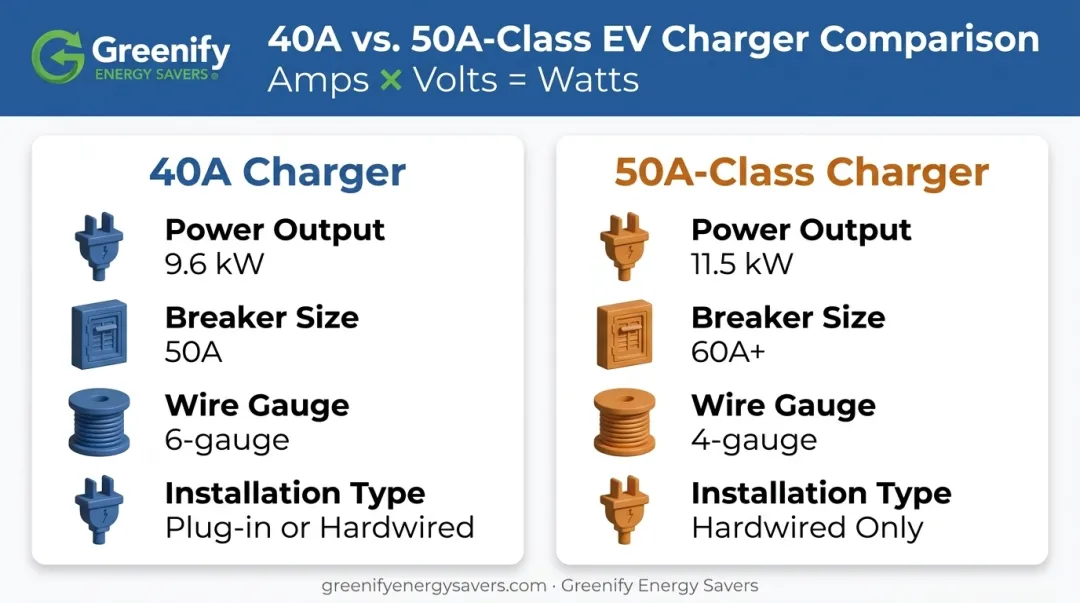

A 40A charger typically needs:
- A 50A breaker
- 6-gauge copper wire (rated for 55A at standard 60°C terminals)
- Either a plug-in NEMA 14-50 outlet or hardwired connection
A 50A-class charger requires:
- A 60A+ breaker
- Wire sized to the actual ampacity rating (6 AWG at 75°C terminals may qualify, but 4 AWG is often used for safety)
- Hardwiring only, with no receptacle option under code
Hardwiring eliminates the plug-and-outlet connection point entirely, which matters because a loose or degrading receptacle is a common source of heat buildup during hours-long charging sessions. Because this work must meet code, most homeowners hire a licensed installer, such as Greenify Energy Savers, to size the wire correctly and pull the required permit.
Total Cost Comparison
Published national benchmarks show:
- Charger hardware: $299-$799+
- Standard installation labor: $800-$2,500 (with $1,700 as a common midpoint)
- Permit fees: $50-$800 (averaging around $310)
- Total typical project: roughly $1,150-$4,000+ depending on wiring distance and panel capacity
Source: Qmerit's home EV charging cost guide
There's no verified national price split specifically between 40A and 50A-class units. What drives the cost difference is the installation type, not the charger itself. Hardwiring a 50A-class unit typically means heavier-gauge wire, a larger breaker, and more electrician labor, all of which add up faster than a simple plug-in 40A job.
Vehicle Compatibility

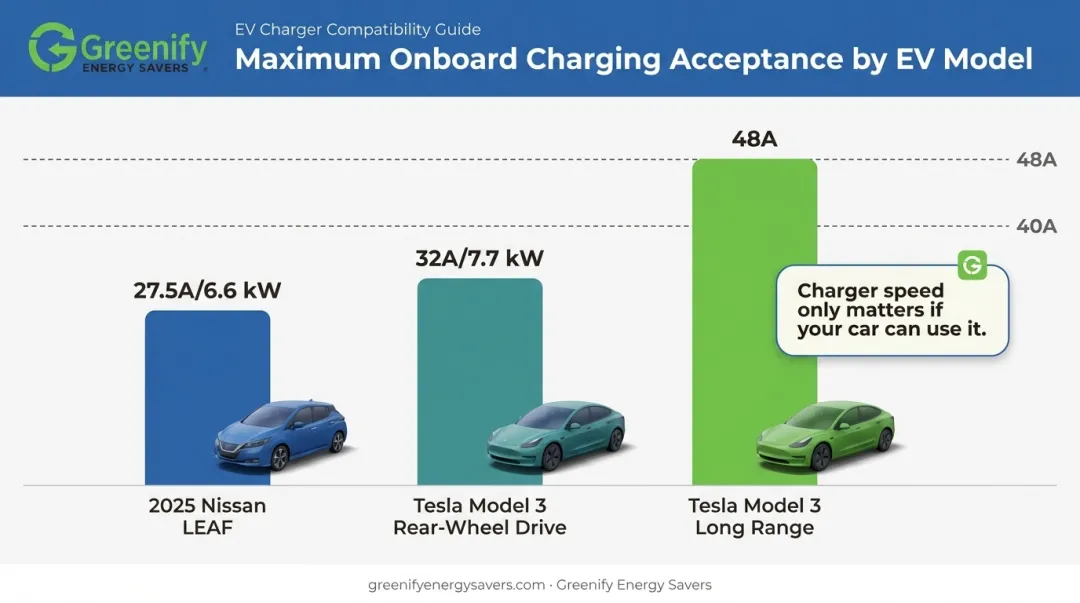

Your EV's onboard charger, not the wall unit, sets the real ceiling on charging speed. Pair a 48A charger with a car that only accepts 32A, and you gain absolutely nothing.
Examples worth knowing:
- Tesla Model 3 Rear-Wheel Drive: capped at 32A (7.7 kW) onboard
- Tesla Model 3 Long Range/Performance: accepts up to 48A
- 2025 Nissan LEAF: capped around 27.5A (6.6 kW) onboard
Before spending extra on a 50A-class unit, check your EV's onboard charger spec sheet. If your car maxes out below 40A, a pricier charger buys you nothing but a bigger installation bill.
What to Consider When Choosing Between 40 Amp and 50 Amp for Your Home
Choosing between 40A and 50A comes down to matching your driving habits and electrical setup to a charger that delivers real value, not simply picking the bigger number.
Your Daily Driving Distance
The U.S. Department of Transportation's National Household Travel Survey shows the average American driver logs well under 30 miles per day. Even a 40A charger replenishes that overnight several times over, since 25-37 miles per hour of charging means a full recharge in 1-2 hours for a typical commute. Unless your daily driving regularly exceeds 100+ miles, 50A speed goes largely unused.
Your EV's Onboard Charging Capability
Some EVs, including several Tesla trims and the Nissan LEAF, cap out at 32A or 40A regardless of what charger you install. Verify your vehicle's maximum acceptance rate before spending more on amperage you can't use.
Your Electrical Panel's Spare Capacity
This is often the deciding factor. Homes with older 100A service panels may already be stretched thin by HVAC systems, electric dryers, and water heaters. Adding a 50A-class circuit on top of those loads can force a full panel upgrade, a cost that can rival or exceed the charger installation itself.
Number of EVs and Future Charging Needs
- Single-EV households: 40A almost always covers overnight needs
- Households planning a second EV or a larger-battery vehicle: the extra headroom of 50A-class charging may pay off long-term
- Frequent long-distance drivers: tighter charging windows make the speed boost more valuable
Plug-In Convenience vs. Hardwired Commitment
A 40A plug-in charger offers flexibility: you can relocate it, upgrade it, or swap units without an electrician. A 50A-class hardwired unit is more permanent, and any future changes typically require a licensed electrician, adding cost and delay.
Budget and Installation Complexity
Weigh the incremental cost of 50A (heavier wire, a bigger breaker, hardwiring labor) against how often you'd actually use the extra speed. For most single-EV households, that math favors 40A.
How Greenify Energy Savers Can Help
Choosing a charger amperage is only part of the equation. What matters more is whether your home's entire electrical and energy setup can support it without strain. That's where a whole-home perspective pays off.
Before adding a high-draw appliance like an EV charger, a home energy assessment can reveal whether other upgrades free up capacity on an aging panel:
- Adding insulation to reduce heating and cooling loads
- Upgrading to Low-E windows to cut energy waste
- Sealing air leaks and ducts to lower overall demand
Reducing demand elsewhere often beats a costly panel upgrade.
Solar offers another way to manage that added demand. Pairing it with either a 40A or 50A-class EV charger setup can offset the added electricity cost of home charging. The result moves you closer to genuine energy independence, rather than just shifting your fuel cost from the gas station to the utility bill.
Greenify Energy Savers has spent 13+ years helping Utah homeowners build comprehensive, cost-effective home energy plans, the kind that account for future needs like EV charging from the start, rather than as an afterthought. If you're weighing a charger installation, a free home energy consultation is a practical first step before committing to hardware.
Conclusion
Match your car's actual charging capability, your daily mileage, and your home's electrical capacity to the charger that fits, rather than choosing based on the biggest number on the box.
For most single-EV households, a 40A charger already covers overnight charging comfortably — often with hours to spare. Reserve 50A-class charging for households with larger-battery vehicles, multiple EVs, or genuinely tight daily charging windows.
Driving habits change, households add vehicles, and panels age, so it's worth revisiting your charging setup every few years. Greenify Energy Savers can evaluate your panel capacity and recommend the right charger for your home when you're ready to upgrade.
Frequently Asked Questions
What is the difference between 40 amp and 50 amp EV charger?
A 40A charger delivers 9.6 kW and can be plug-in or hardwired, while 50A-class chargers deliver around 11.5 kW but must be hardwired. In real-world terms, the speed gap is often just 5-10 extra miles of range per hour.
Will a 40 amp charger be damaged by a 50 amp plug?
No. A 40A charger draws only its rated current regardless of the outlet or breaker size behind it. Installation should still match code requirements, but the charger won't overload.
Is 40 amp enough for an EV charger?
For the vast majority of drivers, yes. A 40A charger easily replenishes typical daily mileage overnight, and most EVs never demand more than 40A anyway.
How fast can a 40 amp charger charge a car?
Most vehicles gain roughly 25-37 miles of range per hour on a 40A charger. A full charge from a low battery typically takes 6-10 hours, depending on the car's battery size.
Do I need a panel upgrade to install a 50 amp EV charger?
It depends on your panel's existing capacity and what else draws power in your home. Older 100A panels are more likely to need an upgrade, a professional electrical assessment will confirm whether yours does.
Is it worth paying more for a 50 amp charger instead of 40 amp?
Only in specific cases: multiple EVs, large-battery vehicles, or very tight daily charging windows. For typical single-EV households, 40A delivers better value for the cost.
